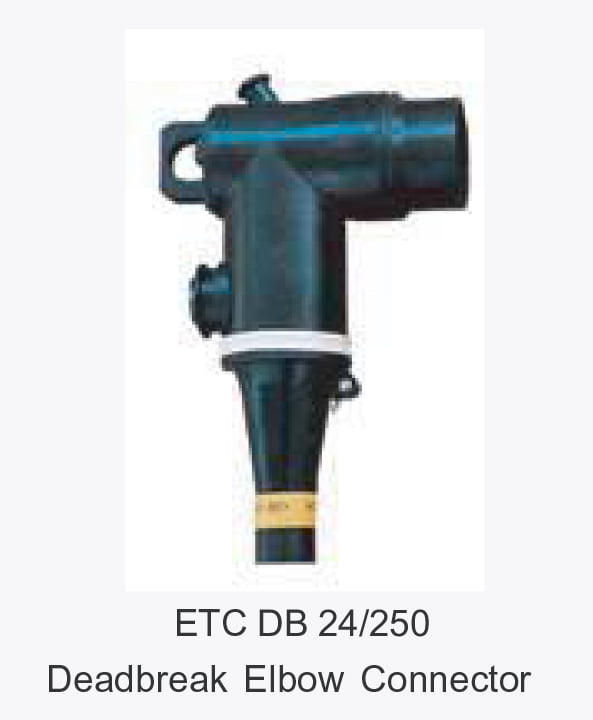

The ETC DB24/250 Deadbreak Elbow Connector
is a fully shielded and insulated plug-in termination, rated 250 amps, upto 24kV, connected with underground cable ranging from 25 to 120 mm2 (conductor cross section).
The ETC DB 24/250 Deadbreak Elbows are molded using high quality peroxide-cured EPDM insulation. It is used to connect underground cable to transformers, switchgear or Ring-Main-Units (RMU) equipped with mated Deadbreak Bushings. The test point is available for use with hot line voltage indicators. It is the essential component for high-voltage electrical connection of the pad-mounted transformers and Ring-MainUnits.
For More Spesification see https://etcaustralia.com.au/media/1108/UPTO%2024kV%20250AMP%20ELBOW.pdf
===============================================================

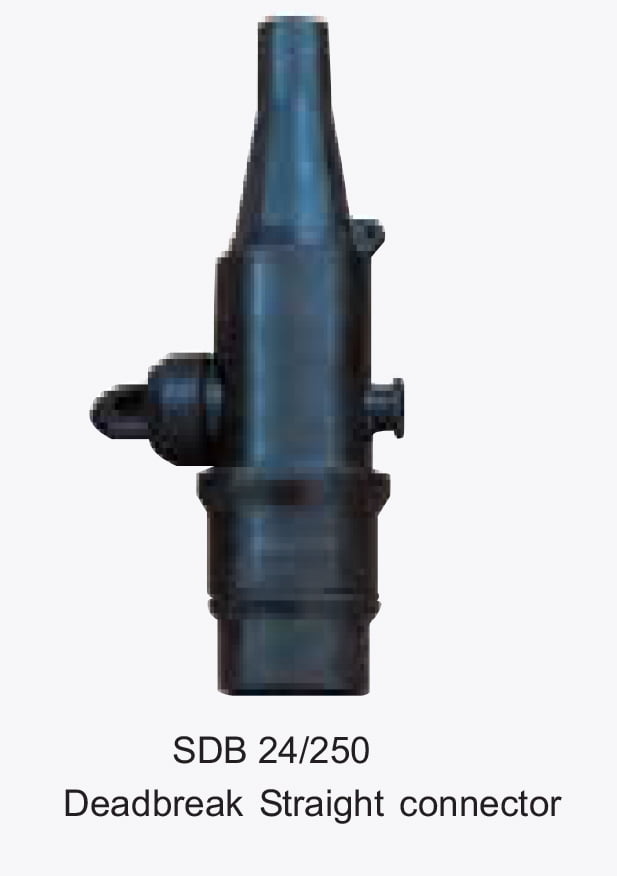

The ETC SDB 24/250 Deadbreak Straight Connector
is a fully-shielded and insulated plug-in termination, rated 250 amps, up to 24kV, connected with underground cable ranging from 25 to 120 mm2 (conductor cross section).
The ETC SDB 24/250 Deadbreak Straight Connectors are molded using high quality peroxide-cured EPDM insulation. It is used to connect underground cable to transformers, switchgear and 250 amps bushings. The test point is available for use with hot line voltage indicators. It is the essential component for high-voltage electrical connection of the padmounted transformers, submersible transformer, switchgear and deadbreak bushings. The design of the straight connector allows connection of the cable in a straight line, not bent at an angle of 90degree.
for more spesification see
https://etcaustralia.com.au/media/1109/UPTO%2024kV%20250AMP%20STRAIGHT.pdf
.
=================================================================

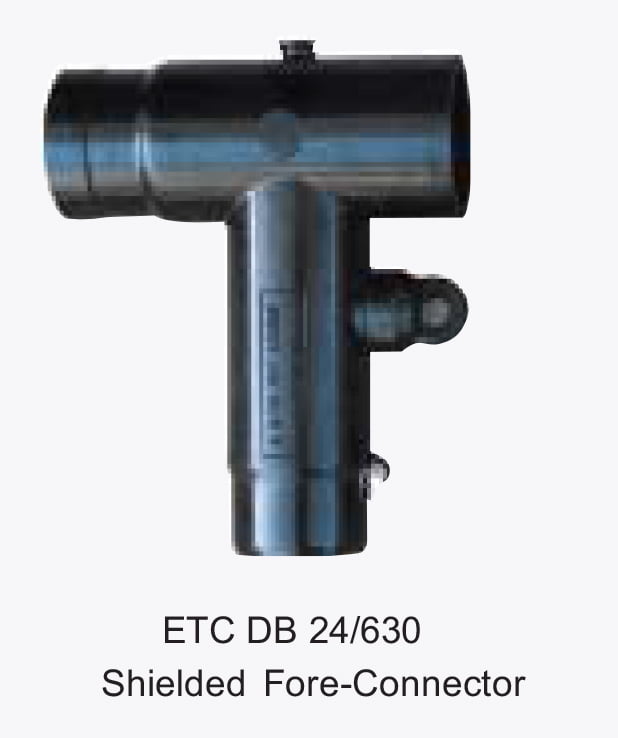

The ETC DB 24/630 Shielded Fore-Connector
is a shielded and insulated termination, rated 630 amps, up to 24kV, connected with underground cable ranging from 35 to 400 mm2 (conductor cross section). It meets the requirements of DIN 47636 Standard.
The ETC DB 24/630 Shielded Fore-Connectors are
molded using high quality peroxide-cured EPDM insulation. It is used to terminate high-voltage underground cable to switchgear, RMU and 630 amps junctions equipped with deadbreak bushings. Shielded Fore-Connectors are designed for used on solid dielectric cable (XLPE or EPR).
For Piggi-Back Connections use DBS 24/630.
for more spesification see
https://etcaustralia.com.au/media/1111/UPTO%2024kV%20630AMP%20ELBOW.pdf
===================================

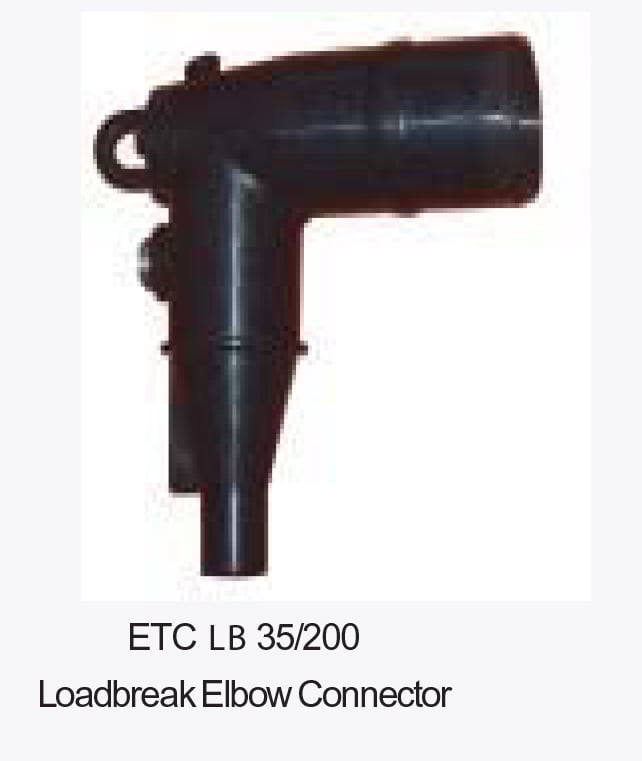

THE ETC LB 25/35KV 200AMP Loadbreak Elbow connector
is a fully-shielded and insulated plug-in termination, rated 200 amps, 25 or 35kV, connected with underground cable ranging from 25 to 120 mm2 (conductor cross section). its loadbreak probe with an ablative arc-follower tip provides dependable loadbreak switching characteristics.
The ETC LB 25/35kV 200AMP Loadbreak Elbows are molded using high quality peroxide-cured EPDM insulation. its used to connect underground cable to transformers, switchgear and 200 amps junctions equipped with loadbreak bushings. The test point is available for use with hot line voltage indicators. It is the essential component for high-voltage electrical connection of the padmounted transformers, submersible transformer and loadbreak junctions.
=================================================================
CJS Termination kits
are suitable for both XLPE/PVC & PILC 31 Core and 3 Core ranging from 16-1000mm2 for both indoor and outdoor applications.
for mor information please see
http://www.cablejointing.com.au/products/high-voltage/kits/termination
=====================================================================
CJS Heatshrink Joint
CJS Inline Joints are suitable for cables both XLPE/PVC & PILC ranging from 16-1000m2 for SWA or unarmoured cables. We also have transition joints available for joining PILC to XLPE cables.
for more information please see
http://www.cablejointing.com.au/products/high-voltage/kits/inline-joints
